Item specifics
  • Wire or Wireless: Wire
  • Brand Name: CARPRIE
  • Lens Material: Plastic + Glass
  • Shell Material: Plastic
  • Length of Video Cable: 6M
  • Material Type: Abs
  • Alarm Type: Rear Side
  • Guiding Line: No
  • feature1: wifi backup camera
Product Description

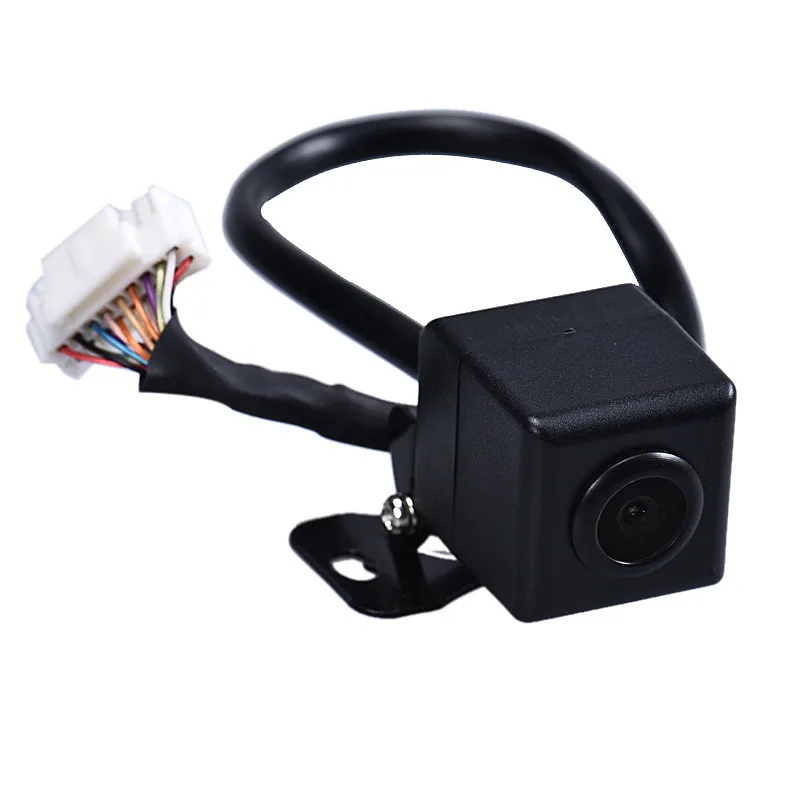

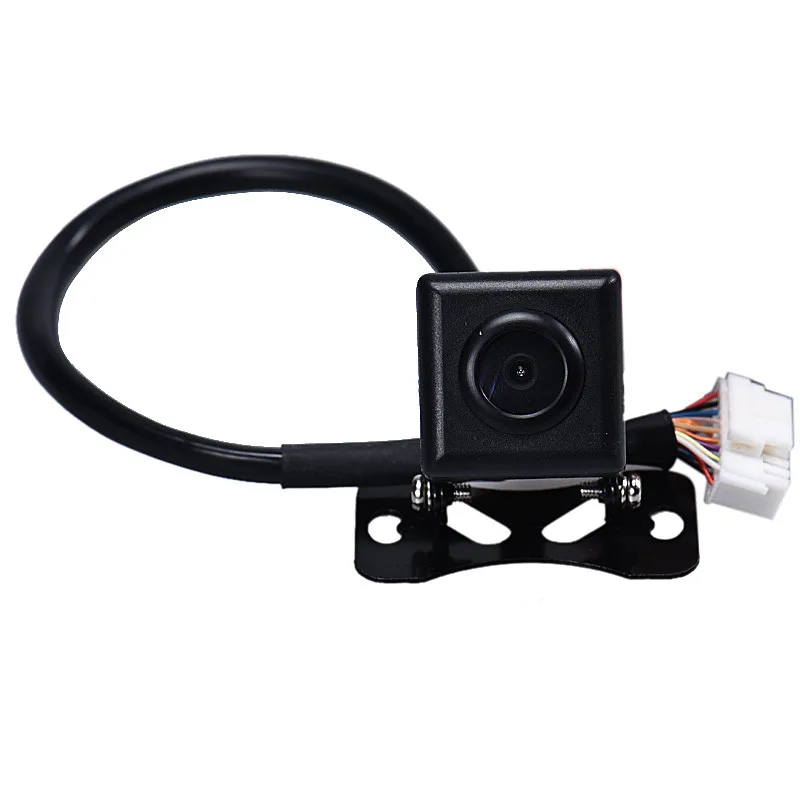

CARPRIE wifi backup camera In Car Backup Rear View Reversing Camera 1/3 Inch Cmos Cam For Android、


  • 100% brand new and high quality.

  • Quantity: 1

  • This is the latest wireless parking camera system in the automotive industry, using Android system through WIFI point-to-point to parking the car.

  • Comparing for the current wired and 2.4G wireless parking system, this new parking system has the unparalleled advantage.

  • It can widely used in car, bus, container truck, MPV, lorry, shop truck, firetruck, steamship and so on.

  • New transmission and new combination of display, real smart reverse.

  • Any Android device with WIFI can be used.

  • Free wiring, wireless reversing, easy to install, save the installation cost.

  • Use of WIFI transmission, install more convenient, widely used in various vehicles

  • The most advanced H.264 video encoding format, digital signal, high definition image quality.

  • Based on TCP transmission, digital signal without interference, the receiver is completely without any external devices.

  • Low power consumption, with vivid colors, fast response and stable.

  • High-quality wireless car camera with aluminum housing, high-definition CMOS, wide-angle vision, waterproof level: IP66, for indoor and outdoor all-day work.


  • Transmission method:WIFI digital signal

  • Video compress:H.264

  • Antenna spec:omnibearing

  • Transmission distance:30-50m

  • Work temperature:0℃~ +50℃/ +14 ~ +122F

  • Store temperature:-20℃~ +60℃/ -4 ~ +140F

  • Work humidity:85%RH

  • Image receiver: Any Android device with WIFI

WIFI reversing camera Specification:

  • Sensitization chipset:CMOS

  • Image pixel:Million pixels

  • Visual angle:120°~150°

  • Minimum illumination:2.0Lu/F1.2

  • Transmission rate:80mW

  • Power:DC 12V

  • Night sight distance:5-10M

  • Waterproof level:IP66

  • Fix type:Socket and license plate frame

How to use the device ?

  • 1. Install carcamera to your Android device, and restart your device.

  • 2. Turn on your Android WIFI, search GLW-CAR-R signal and connect it, put in password (find the password is 88888)

  • 3. Open carcamera, choose picture wifi signal, and choose the wifi spot again: when the light turn to green, you can see the light

How and Where to install backup camera?

  • 1. Turn off the vehicle power supply. Do not power on when the camera haven’t install well to prevent short-circuit damage to the device!

  • 2. Determine In-vehicle camera mounting position.

  • Socket Type : drill hole , remove the screws to open the lens cover from the rear of the lens aperture leads , and then fit on the screw and spring ring, push the lens to fix the camera firmly after adjust level of positive image. And then install the power wire: R + connect to the reversing lamp power wire ( positive pole ), S + connect to the brake lamp power wire ( positive pole), GND (-) connect to any metal of the vehicle , start the car , brakes, reverse gear , then the reversing image can shown on your Android device.

  • Note: Please follow the mark of the power wire (R +: reversing wire positive pole, S +: brake wire positive pole, GND: negative pole)

Package Content:

  • 1X WIFI In Car Backup Rear View Reversing Camera 1/3 Inch Cmos Cam For Android

  • 1XUser Manual

  • 1Set Accessorie(NO Retail Box. Packed Safely in Bubble Bag)



Packaging Details
  • Unit Type: piece
  • Package Weight: 0.2kg (0.44lb.)
  • Package Size: 22cm x 22cm x 22cm (8.66in x 8.66in x 8.66in)
