Item specifics
  • Wire or Wireless: Wire
  • Brand Name: LEEWA
  • Shell Material: Plastic
  • Guiding Line: Yes
  • Alarm Type: Accessories
  • Length of Video Cable: 6M
  • Material Type: Abs
  • Lens Material: Glass
Product Description
Special CCD NTSC Car Rear view Camera for:
for TOYOTA RAV-4 2006–2012
for TOYOTA Porte 2006–2012
for TOYOTA Vitz/Platz/Yaris Hatchback(5-door) 2006-2011

Specifications:
Reverse Image / Mirror Image
Night version
Waterproof

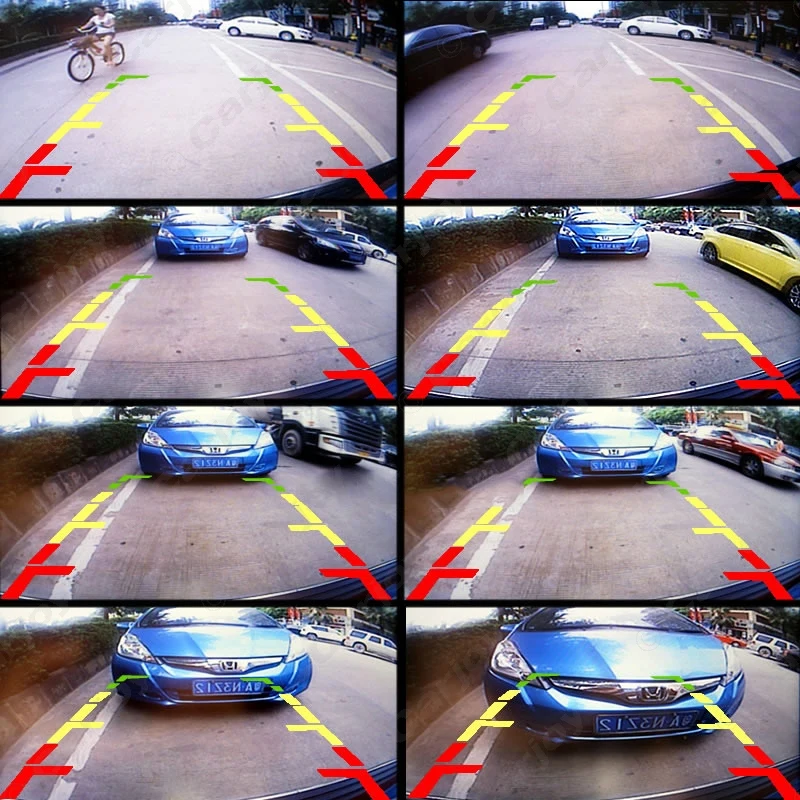

Distance reference line
Image feature:CCD (made in Japan)
TV System: NTSC (if need PAL,pls send the message to us)
Effective pixels: NTSC:728 x 582 (PAL:728*512)
View angel:170°
Horizontal Resolution(TV lines):480 TV lines
minimum illumination:0.6Lux/F1.2
IP Rating: IP68
current consumption:Max 120mA
Power Supply:DC12V
Working temperature:-20 C~70 C,Max Rh 95%
Storage temperature:-40 C~80 C,Max Rh 95%

How to Install:
Take out your stock license plate light at the back of your car.
Fix the camera to where the stock license plate light was.
Connect the built-in license plate light of the camera to where the stock license plate light was connected to get the power
Connect the power of the camera to your car reverse lights - red wire to positive and black wire to negative.
Connect the video cable of the camera to the extension cord.
Connect the extension cord to your car monitor.
You will see the images when your car is in reverse shift.
CJ1CJ2CJ3CJ4CJ5
Packaging Details
  • Unit Type: piece
  • Package Weight: 0.2kg (0.44lb.)
  • Package Size: 1cm x 1cm x 1cm (0.39in x 0.39in x 0.39in)
