Item specifics
  • Shell Material: Aluminium Alloy
  • Wire or Wireless: Wire
  • Lens Material: Plastic + Glass
  • Length of Video Cable: 2M
  • Guiding Line: Yes
  • Material Type: Abs
  • Alarm Type: Rear Side
  • Brand Name: CARMOUR
  • Place of Origin: Shenzhen,China
  • Item Type: Car Monitor
  • HD digital screen: Yes
  • Car Maker: universally
  • Parking Assistance Type: Rear View Camera
Product Description


 HOT 3 in 1 Wireless Car Parking Assistance 4.3 inch LCD Monitor  + Butterfly Car Rear View Camera + 2.4Ghz Wireless Camera Kit


Car Monitor Features:
- Super slim
- Super high-quality picture
- TFT-LCD, display your favorite VCD, DVD, DVB ....
- Automatically turn on and switch to video source when video signal is detected.
- Ideal for car reversing monitor and vehicle entertainment.
- Clip on the original rear view mirror, simplifies installation and detachment
- Screen size: 4.3" color TFT LCD
- 2CH vedio in, No Audio in
- Wide viewing angle (V x H): 120 x 90
- Screen format: 4:3
- System: PAL/NTSC auto switch
- Color: Black
- Nominal voltage: +12V DC
- Power consumption: <3W
- Working environment: -20 ~ +60 degrees

Note: please Connect the Rearview camera\'s power cable with Reversing lamp, and connect camera\'s video cable with LCD\'s white cable (Video V1),then the LCD will show Camera\'s video when you are Reversing, and stop playing movie (auto switching)

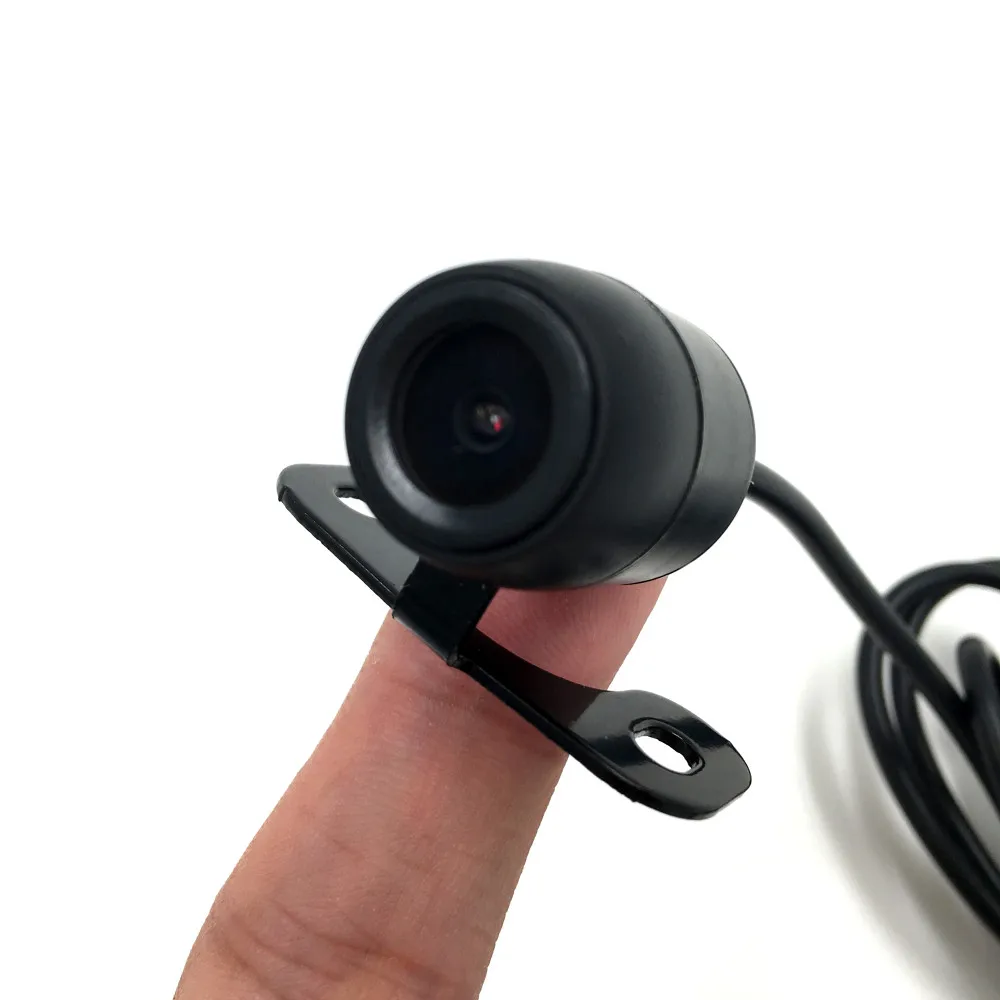

Camera Features:
1. Weatherproof, can be Used both in car and home
2. HD 7070  imaging sensor
3. Support NTSC Video system
4. High-definition and wide viewing angle
5. Applicable to variety of Vehicles: car, truck, RV, mini-van etc
6. Easy to install, you can install the monitor via mount holder or universal bracket
7. Can help avoid incidents and accidents abrasion well



Image sensor CMOS/CCD(optional)
Resolution(TV Line) 420-480 lines
Effective pixels 648*488
Minimum illumination 0.5 lux
IP rating  IP68K
lens Angle(Deg.) 150°-170°
Power Supply(DCV) DC12V±1V
Power <1W
Signal system 1/50Hz,1/60Hz
S/N Ratio ≥48dB
Video output 1.0vp-p.75ohm
White Balance Auto
AGC Auto
Operating Temperature -20~+75(RH95%,Max)
Storage Temperature -30~+85(RH95%,Max)

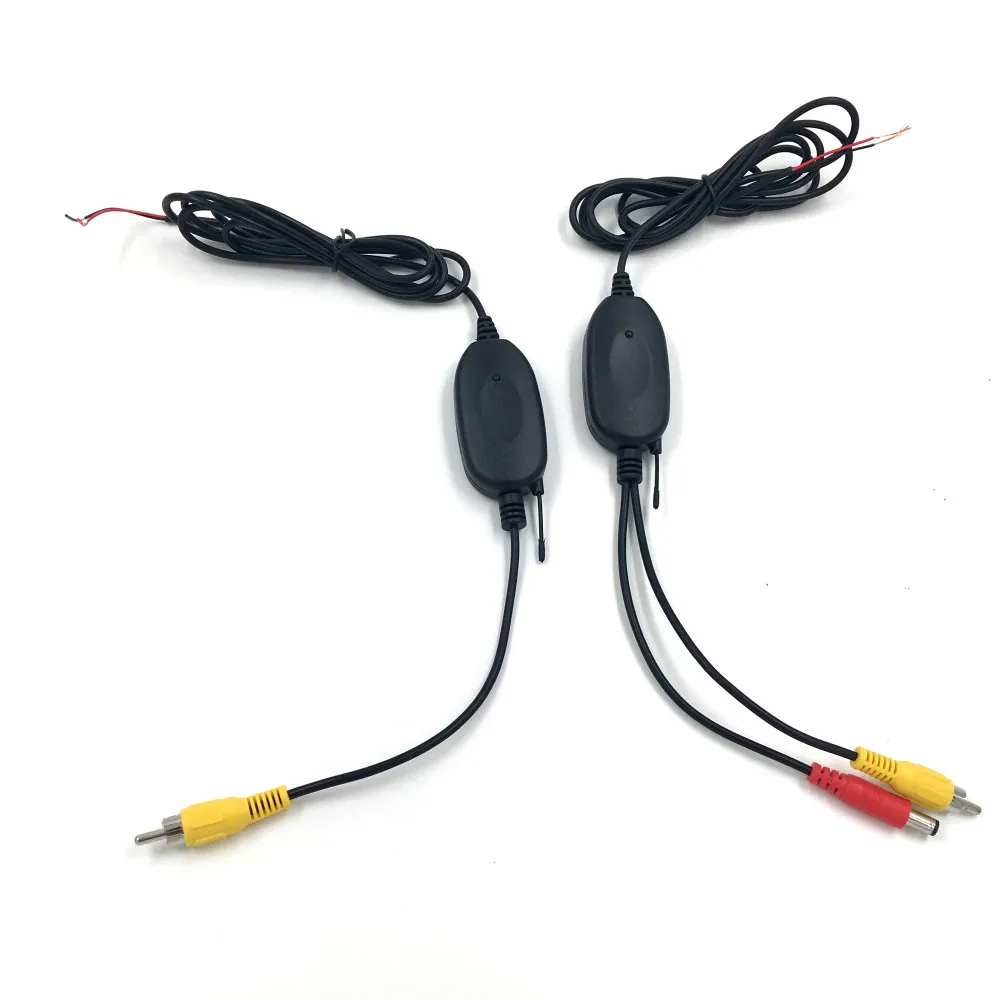

Wireless Transmitter Receiver Kit
100% brand new,high quality
Easy installation
Take one minute get your camera become a wireless camera
Wireless 2.4GHz transmitter/receiver set (12-Volt for vehicle installation)
Work range: up to about 50m(Hollowness)
Fit all RCA composite video connections
Power: DC 12V
Transmitter/Receiver cable length:1.5m
How to Install a Camera with the Wireless Module:

Take out your stock license plate light at the back of your car.
Fix the camera to where the stock license plate light was.
Connect the built-in license plate light of the camera to where the stock license plate light was connected to get the power
Connect the wireless module (transmitter) to your camera via the two cables - yellow plug for AV output and black plug for power
Connect the wireless module (transmitter) to the reverse light of your car to get the power - red wire for positive and black wire for negative
Connect the wireless module (receiver) to your car monitor - yellow plug for AV input.
Connect the wireless module (receiver) to your car battery or cigarette lighter to get the power - red wire for positive and black wire for negative
You will see the images when your reverse car.


Package includes:
1 x Rearview mirror monitor
1 x Rear view Camera
1 x Wireless Transmitter and Receiver Kit
